EN-195 Low Loss Cable 100 meter Spool [EN-195-100]

Product Links
pdf Link Datasheet

EN-195, Low Loss 100 meter Spool.

EN-195 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.

It is constructed with a UV resistant polyethylene jacket for outdoor use.

This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.

Ehanced for usage from 2GHz up to 6GHz

Electrical  Specifications :
Cutoff Frequency 41 GHz
Velocity of Propagation 76%
Impedance 50 ohms
Capacitance 25.4 pF/ft (83.3 pF/m)
DC Resistance Inner Conductor 7.6 ohms/1000ft (24.9 ohms/km)
DC Resistance Outer Conductor 4.9 ohms/1000ft (16.1 ohms/km)
Peak Power 2.5 kW
Jack Spark 3000 Volts RMS
Cable Construction:
Inner Conductor Solid Bare Copper 0.94 mm
Dielectric Foam Polyethylene 2.79mm
Outer Conductor Aluminum Tape 2.95mm
Capacitance 25.4 pF/ft (83.3 pF/m)
Braid Tinned Copper 3.53mm
Jacket Black PVC/PE. 4.95mm
Mechanical and Environmental Specifications:
Minimum Bend Radius 12.7mm
Tensile Strength 40 lb (18.2kg)
Cable Weight 0.03kg/m
Operating Temperature Range -40°C to +85°C

1x EZ-195-100, Low Loss 100 meter Spool.

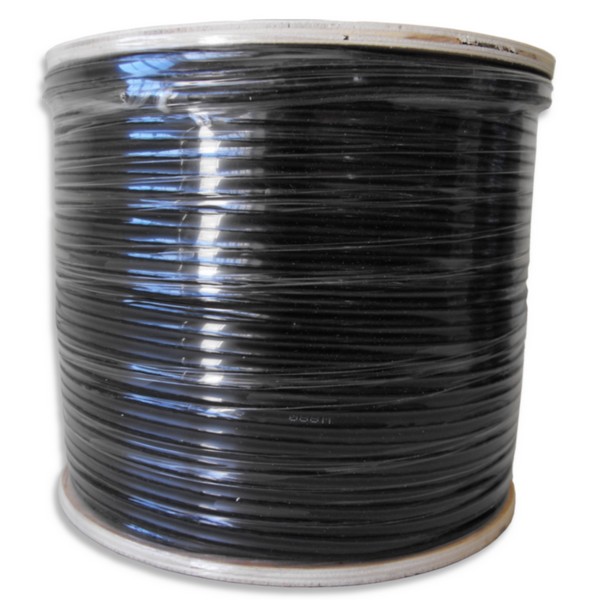

EZ195 100reel

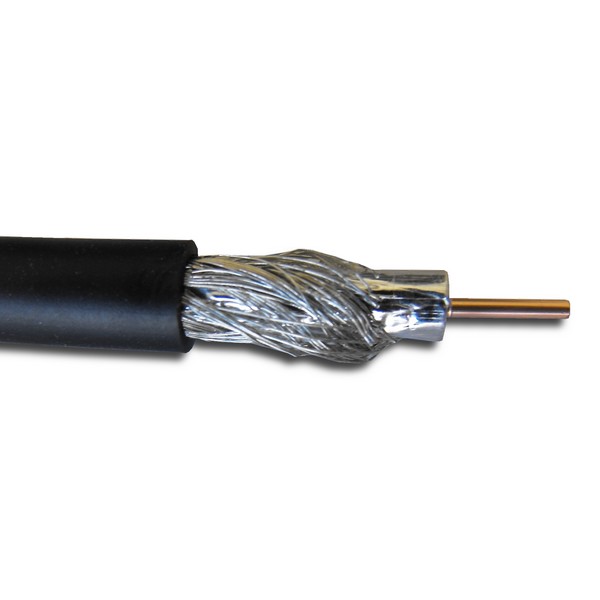

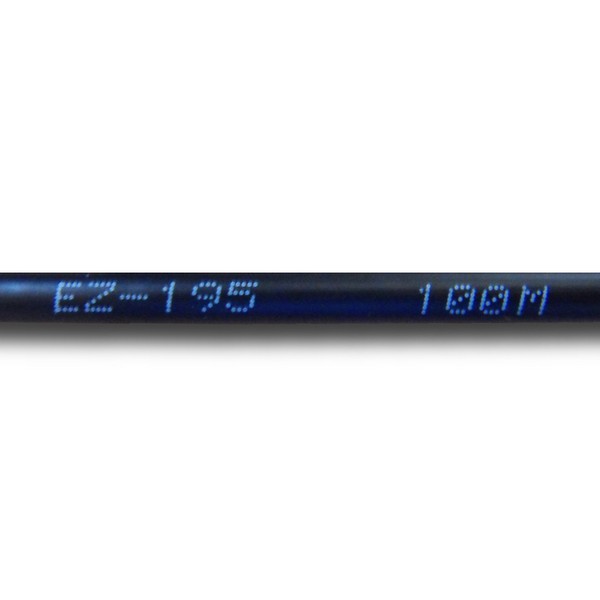

EZ195 100closeupEZ195 100logo
