RJ45 Ethernet Pass-Through System [EZ-RJ45EPS]

Product Links
pdf Link Datasheet

RJ45 Ethernet Pass-Through System

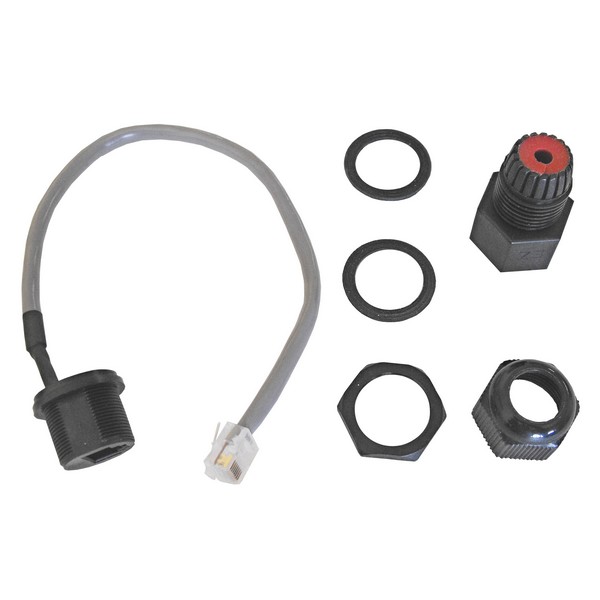

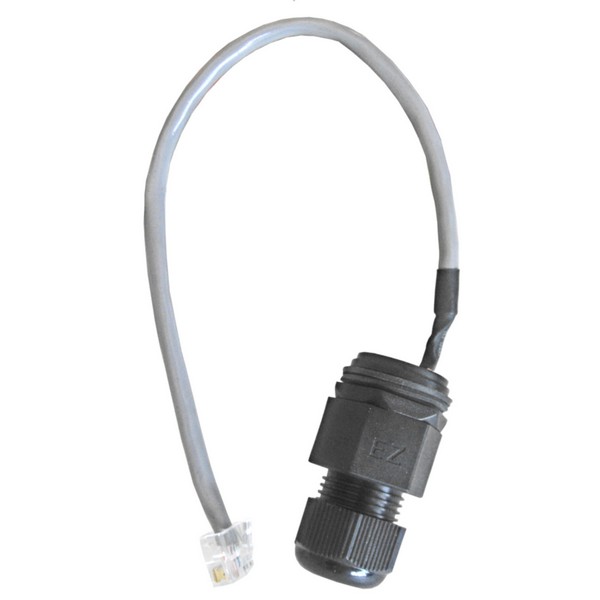

The EZ-RJ45EPS connector system is a field replaceable outdoor rated for high speed 10BaseT, 100BaseT and 1000BaseT networks. The system features a RJ45 Receptacle mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector and seals the cable to IP68 requirements. The system provides for quick and easy disconnect and reconnect of equipment.

Because of its many unique design features and low cost, the EZ-RJ45EPS is a universal solution for many industries where a sealed and waterproof, yet removable, Ethernet connection is required. These include outdoor applications such as wireless equipment or video surveillance equipment and indoor applications such as equipment used in factory automation or harsh industrial processes.

RJ45 connectors are not designed for high reliability in the presence of moisture, dust or corrosive elements. For this reason, the IP68 sealing ability of the EZ-RJ45EPS connector system provides a reliable connection, even in very harsh environments, for many years of trouble free service.

For modern wireless systems, the quick disconnect feature allows for ready replacement of rooftop equipment, to minimize field time spent servicing customer?s equipment, and minimizing downtime for the customer. This helps to increase operator profitability and customer satisfaction. The EZ-RJ45EPS has 25cm cable length.

Specifications
Operating temperature -60°C to +80°C
Sealing ability IP68
Ethernet Support 10BaseT, 100BaseT and 1000BaseT
Cable Cat.5e/6
Cable length 25cm
Connector type RJ45
Package contents

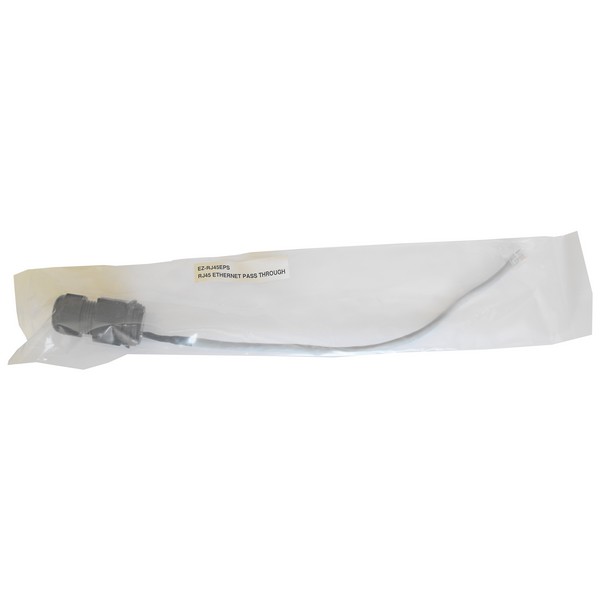

1x RJ45 Ethernet Pass-Through System in polybag
