2400-2485MHz 8dBi OMNI Antenna [EZ-OM24V08INF]

Product Links
pdf Link Datasheet

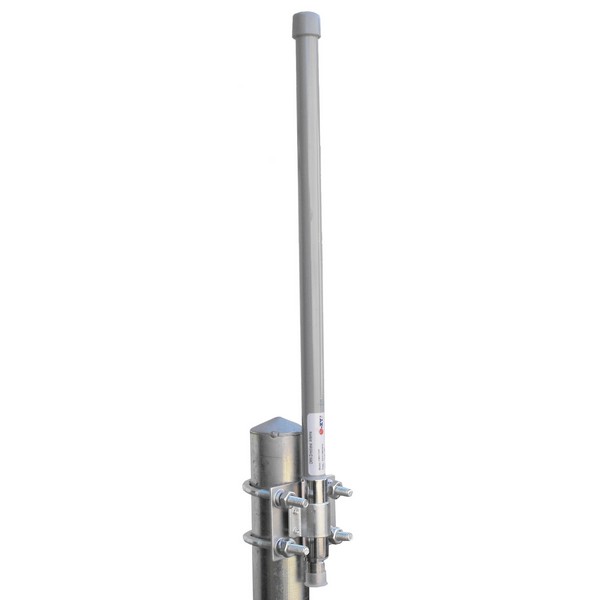

The new EZ-OM24V08INF OMNI Directional Antenna is made from sealed UV Stabilized Fiberglass with steel base and is available with an integrated N Female Connector.

The gain of this antenna is 8dBi and comes with 20° of Vertical BeamWidth.

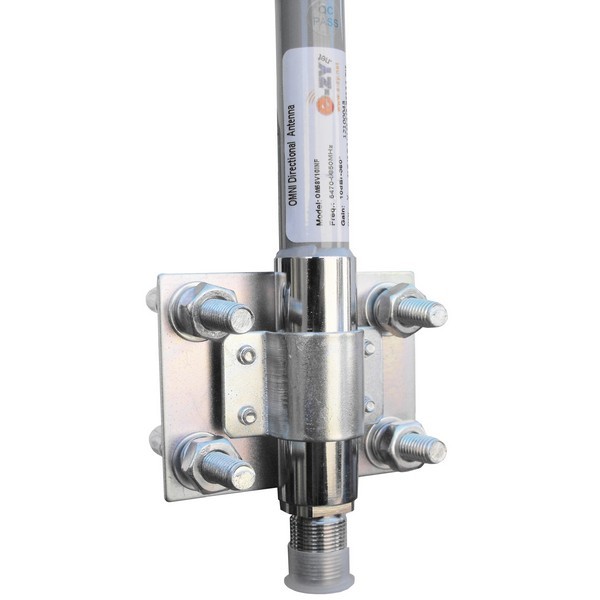

The antenna is supplied with steel mounting bracket and hardware for 25mm to 50mm diameter pole.

The EZ-OM24V08INF comes standard with integrated N Female bulkhead connector with heavy duty nuts for alternate mounting methods such as standoff mounting, thru-roof mounting, etc.

The EZ-OM24V08INF is ideally suited for MultiPoint applications where wide coverage is desired.

* Superior performance.
* Heavy-duty steel mounting brackets.

Frequency 2400-2485MHz
Gain 8dBi
Polarization Vertical
Vertical BeamWidth 20°
Horizontal BeamWidth 360°
Impedance 50 Ohm
Max. Input Power 50 Watts
V.S.W.R. <1.5:1 avg.
Weight 0.8 Kgr
Length 700mm
Diameter 19mm
Radome Material Grey Fiberglass
Mounting 25mm to 50mm
Rated Wind Velocity 58m/s
Package Contents:
1x EZ-OM24V08INF OMNI Antenna in brown carton
1x Mounting Bracket
