2400-2485MHz 5dBi Mesh OMNI Directional Antenna [EZ-OM24V05MNM]

Product Links
pdf Link Datasheet

2.4GHz 5dBi Mesh OMNI (N-Male connector)

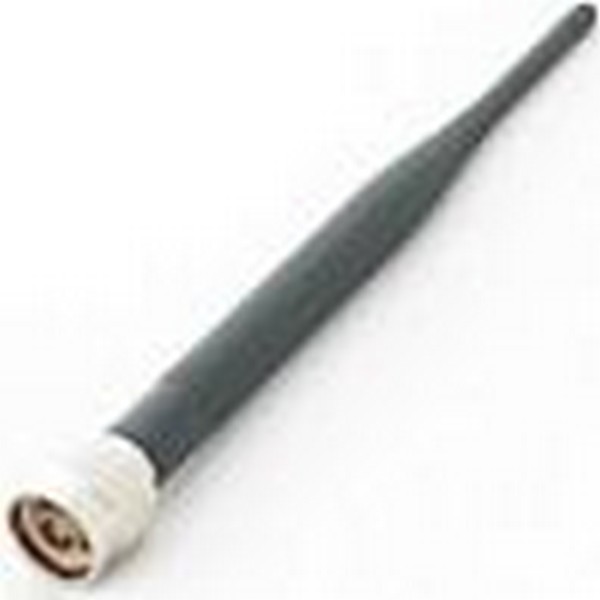

The new OM24V05MNM OMNI Directional Antenna is made of TPEE Material with steel base, provides broad coverage and 5 dBi gain, and is available with an integrated N-Type Male Connector.
The gain of this antenna is 5dBi and comes with 20o of Vertical BeamWidth.
The new OM24V05MNM antennas are designed to allow you to get more range out of your existing indoor or outdoor wireless equipment.
The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength. This will increase range and signal strength to allow the wireless equipment to operate at optimal speed.
The antenna is targeted for MESH applications and  is manufactured to mount directly on the indoor or outdoor case of the electronics. There is no mounting bracket with this OMNI Directional antenna.
It is only 20cm in length and is available with N-Type Male Connector  (Female thread, female center pin.)
The OM24V05MNM is ideally suited for MultiPoint applications where wide coverage is desired.


Frequency 2400-2485MHz
Gain 5dBi
Polarization Vertical
Vertical BeamWidth 20°
Horizontal BeamWidth 360°
Impedance 50 Ohm
Max. Input Power 50 Watts
V.S.W.R. <2.0 avg.
Weight 25gr
Length 200mm
Diameter 11mm
Radome Material TPEE
Radome Color
Working Temperature
-40° to 55° C
Connector N-Type Male
Package Contents:
1x OMNI Antenna in nylon bag
