2.4GHz 9dBi OMNI Swivel SMA Male [EZ-RD24R09ISM]

Product Links
pdf Link Datasheet

The new EZ-Xtender indoor range extender antennas are designed to allow you to get more range out of your existing indoor wireless equipment.

The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength when compared to the standard 9Bi rubber duck antenna. This will increase range and signal strength to allow the wireless equipment to operate at optimal speed.

With it's high gain performance it can effectively extend the signal strength and give increased operational range to existing wireless equipment.

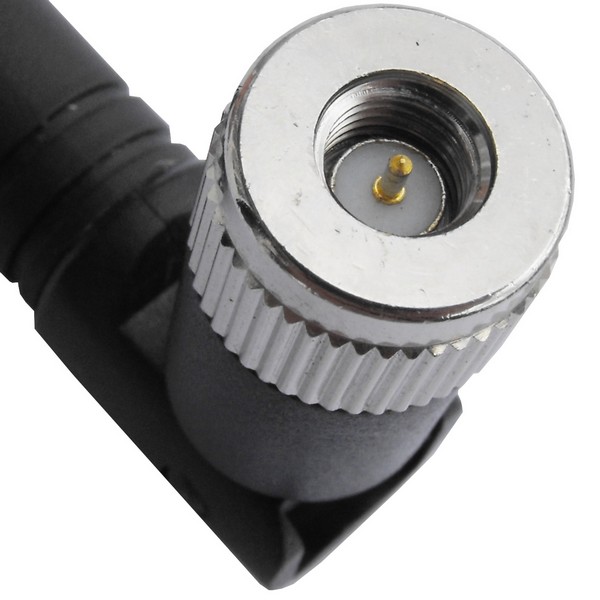

It is only 38cm in length and comes with SMA Male connector (Female thread, Male center pin.)

Parameter Min Typ Max Units
Freq Range 2400 2485 MHz
Gain @ 2400 MHz 9 dBi
Ver Beamwidth 90o Deg
Hor Beamwidth 360o Deg
VSWR 1.5:1
Impedance 50 Ohm
Input Power 10 W
Operating Temp -10 +60 Deg C
Connector RP-SMA Plug
Weight 60 gr
Dimensions 380 x 10D mm

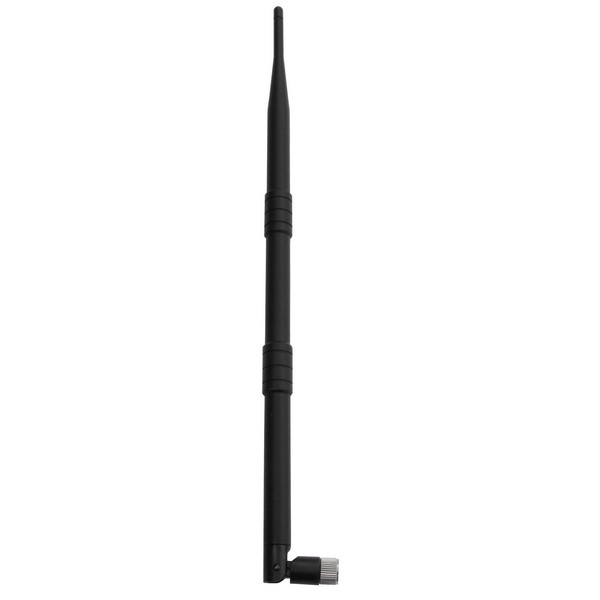

EZ RD24R09ISM2

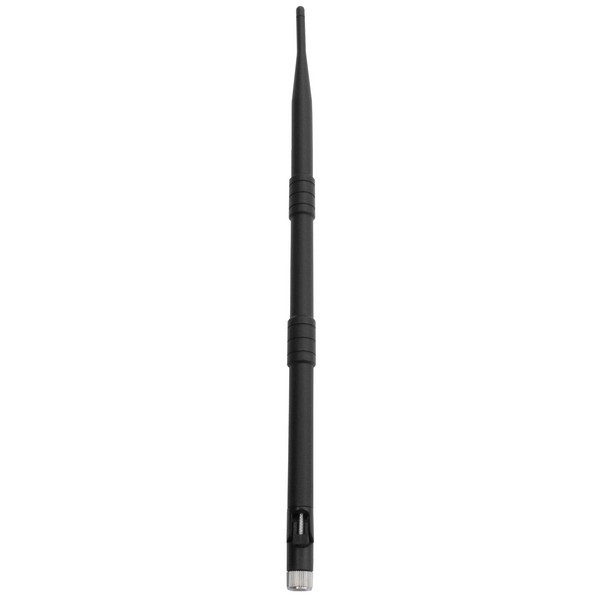

EZ RD24R09ISMstraightEZ RD24RxxISMconnector2
