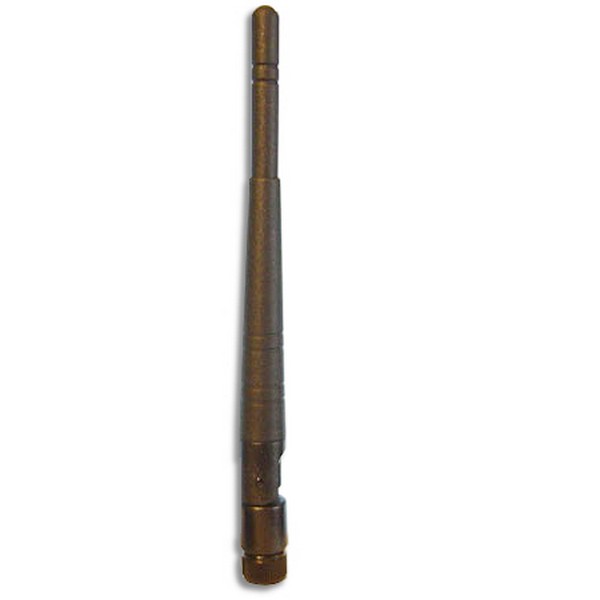

2.4-5.8GHz 5dBi Dual Band OMNI Swivel RP-SMA Rubber Ducky [EZ-RDDUR05IRS]

Product Links
pdf Link Datasheet

The EZ-RDDUR05IRS TriBand APXtender Indoor Rubber Ducky Omnidirectional Antenna is used to extend the range of indoor access points or client bridges in 2.4GHz, 5.3GHz and 5.8GHz wireless LAN environments. The antenna is a "TriBand" rather then "Wide Band" antenna design in that it will reject out of band signals between the bands of interest. This feature helps to minimize interference and system noise. The antenna features a 360 Degree  orizontal Tranmissiong Pattern and a 90 Degree Vertical Transmission Pattern. The transmit / receive element can be tilted in relation to the base to direct signal where it is needed (0,45, 90 degrees).

Features:
* Tri-Band Operation : 2.4GHz, 5.3GHz and 5.8GHz.
* Direct replacement for 2.2dBi rubber ducky antennas on most indoor access points and bridges.
* Extends range of wireless access points or wireless bridges
* Suitable for most 802.11a, 802.11b, 802.11g and OEM wireless equipment.

TECHNICAL SPECIFICATIONS
Frequency Range 2400-5825MHz
Gain @ 2400 MHz 2,2dBi
Gain @ 5150 MHz 4dBi
Gain @ 5725 MHz 5dBi
Polarization Vertical
Vertical BeamWidth 90°
Horizontal BeamWidth 360°
Nominal Impedance 50 Ohm
Max. Power 10 Watts
VSWR 1,5:1
Weight
25 gr
Length
159 mm
Diameter
12,7 mm
Radome Material
TPEE
Radome Color
Black
Working Temperature
-40° to 55° C
Connector RP-SMA Plug (Female thread, female center pin.)
