Gigabit Ethernet Surge Protector [EZ-SPPOEG]

Product Links
pdf Link Datasheet

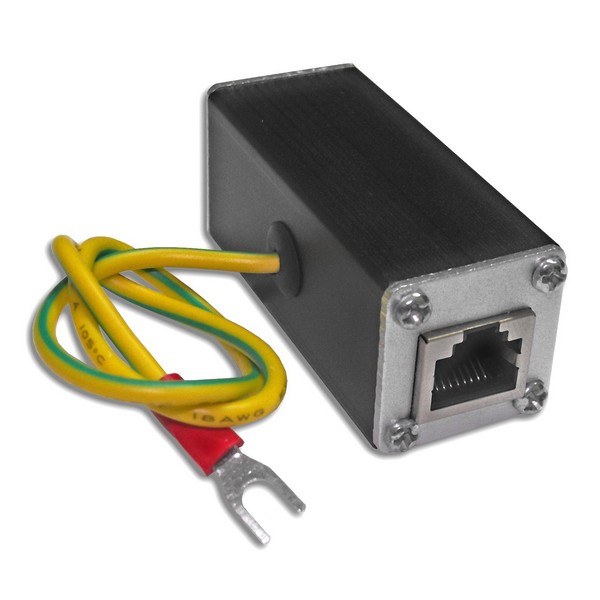

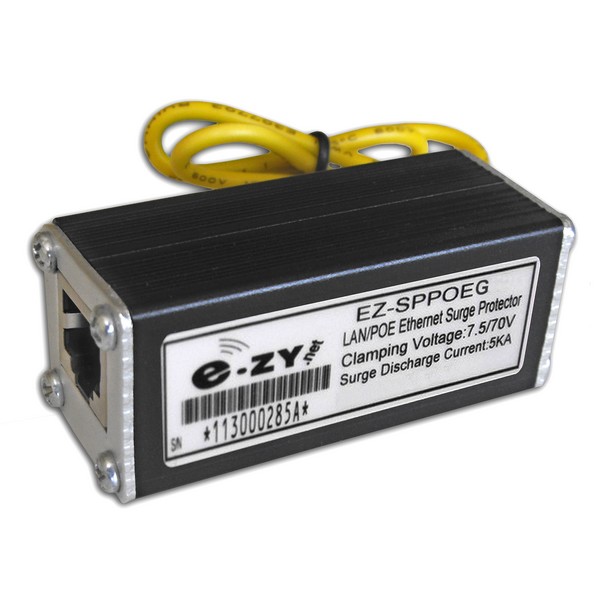

The EZ-SPPOEG is a low cost 100/1000Mbps Network POE Lightning/Surge 10KA protector to help protect equipment from surges due to lightning and grid power fluctuations. It protects all 8 CAT5 pins with 7.5V clamp voltage on the data wires and 70V clamp voltage on the POE power wires. It has an all metal case and shielded RJ45 connectors for EMI suppression. There are 2 integral mounting feet and a separate 16AWG ground wire.



EZ SPPOEGMain

SetWidth60-EZ-SPPOEGViewSetWidth60-EZ-SPPOEGInsideSetWidth60-EZ-SPPOEGRetail
